New Upgrade ICM2805A Furnace Control Board Replacement for Nordyne 624631 and 903106 Control Boards,Used with G3,G4,G5,G6,M2 and M3 Furnace Modules

From the Manufacturer

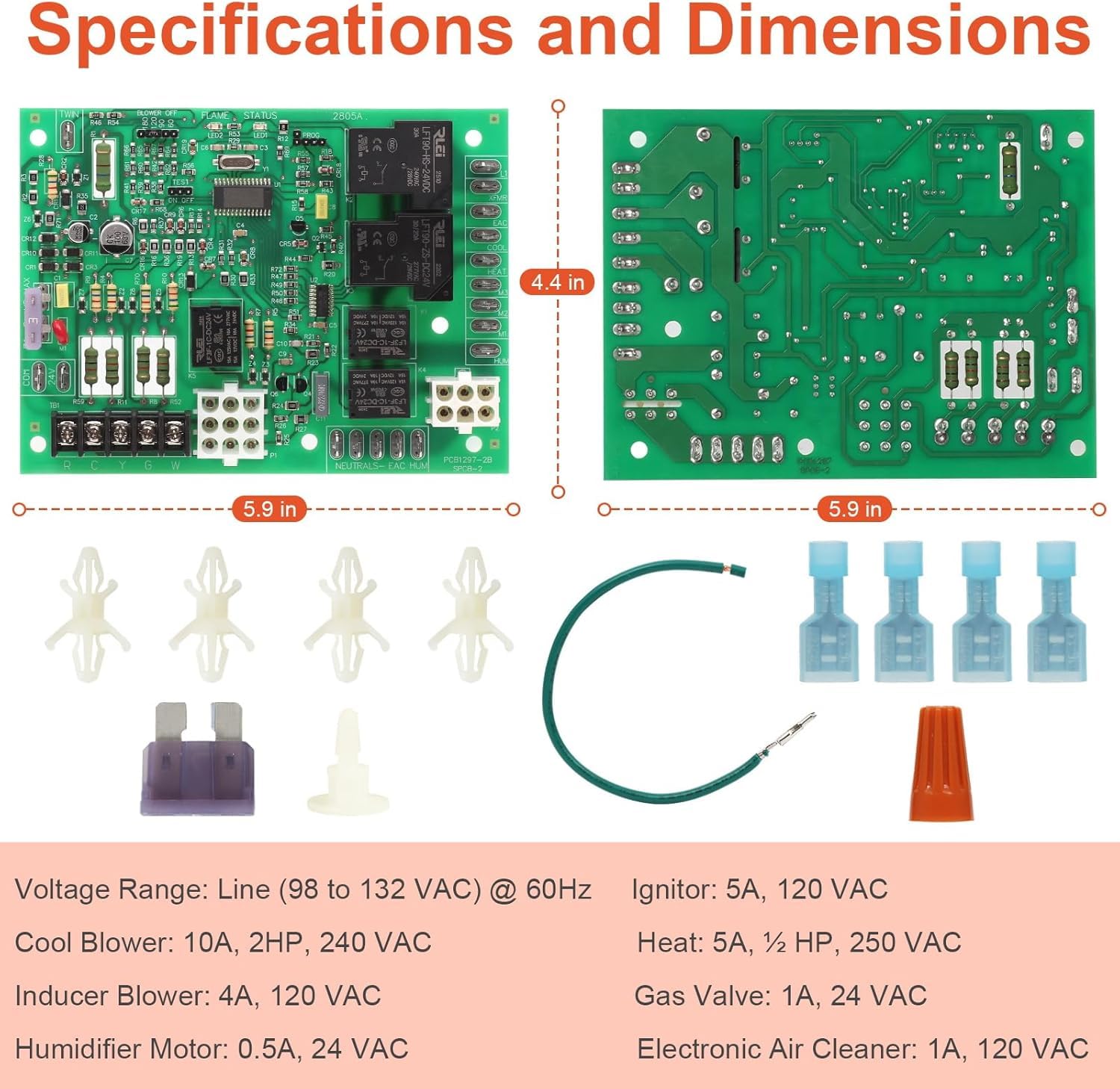

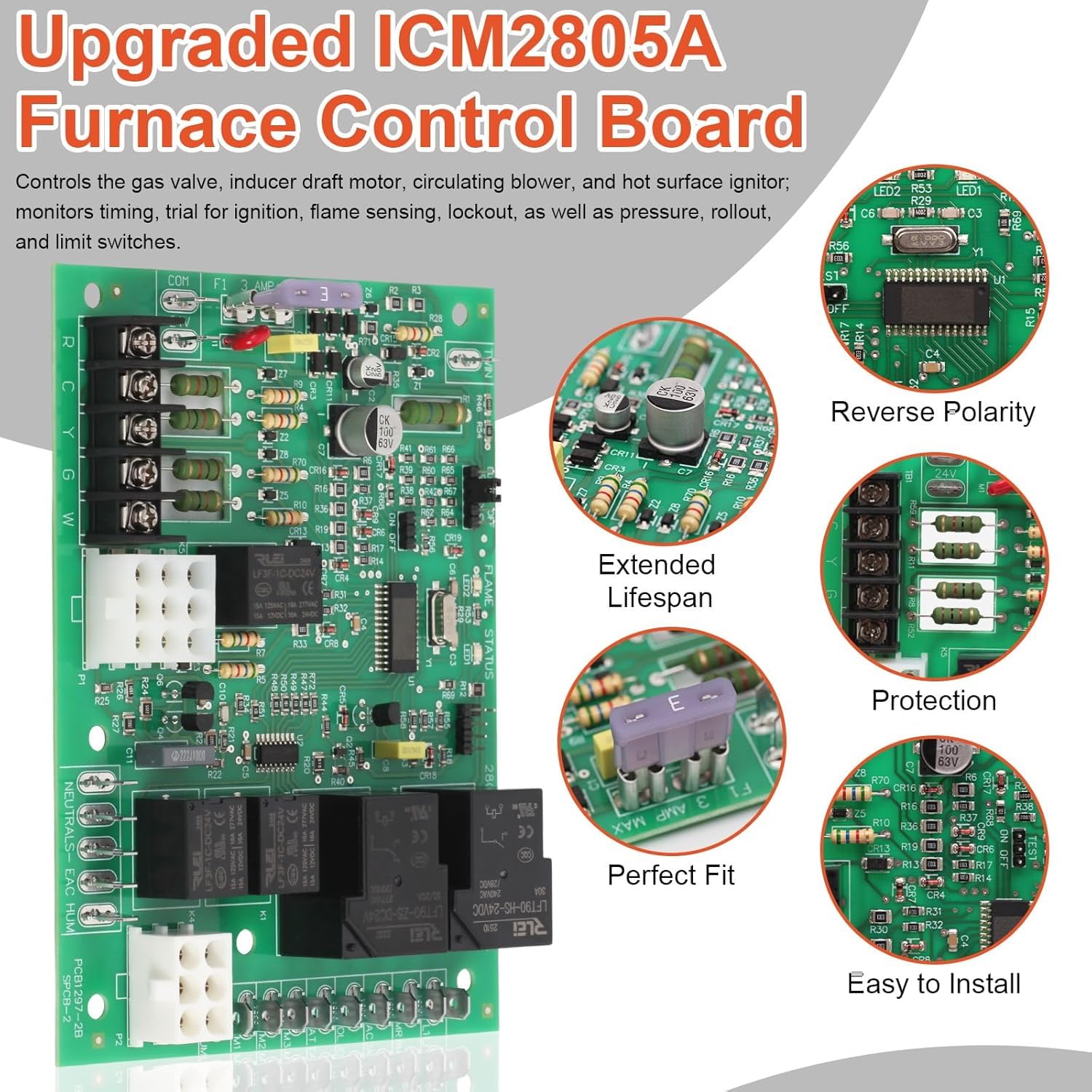

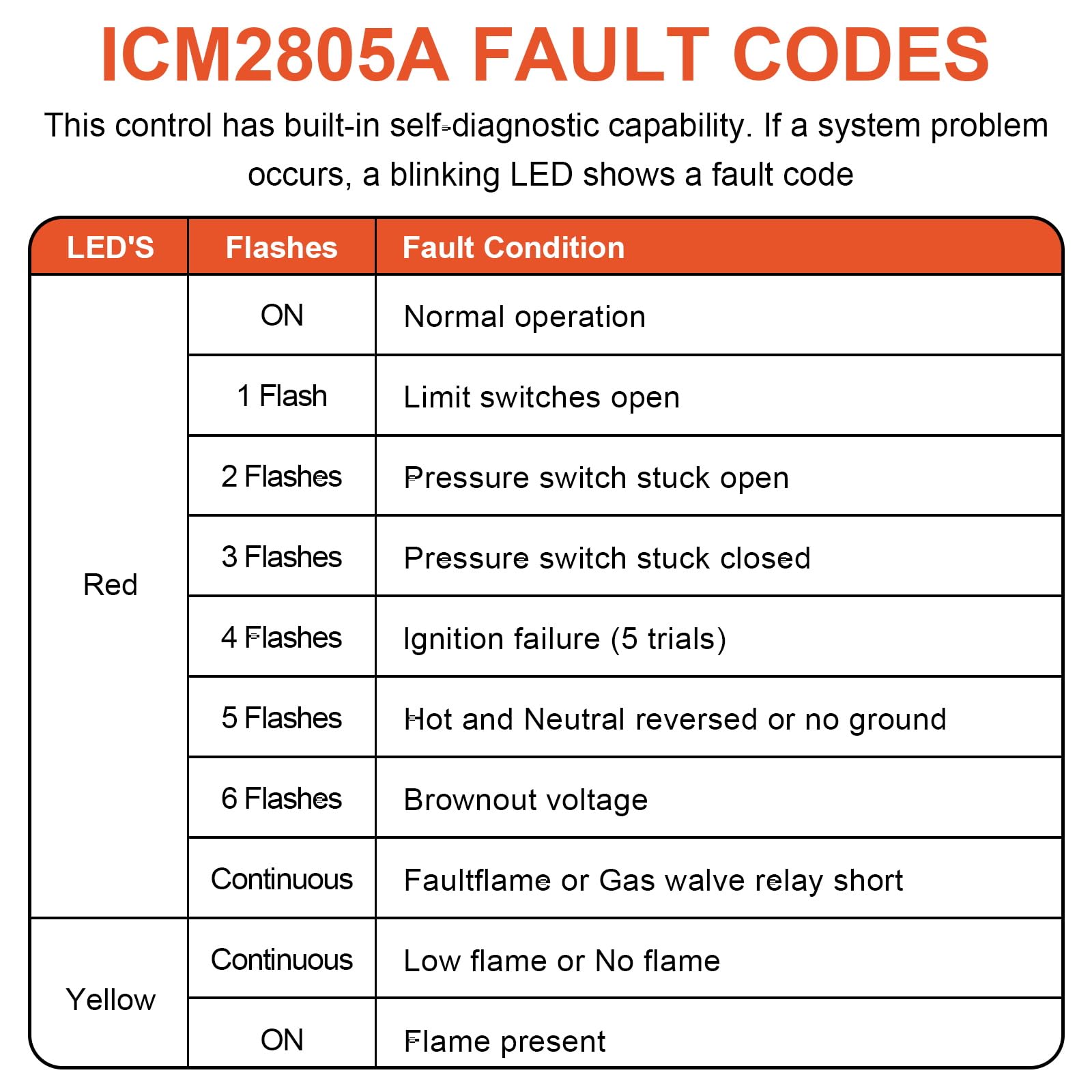

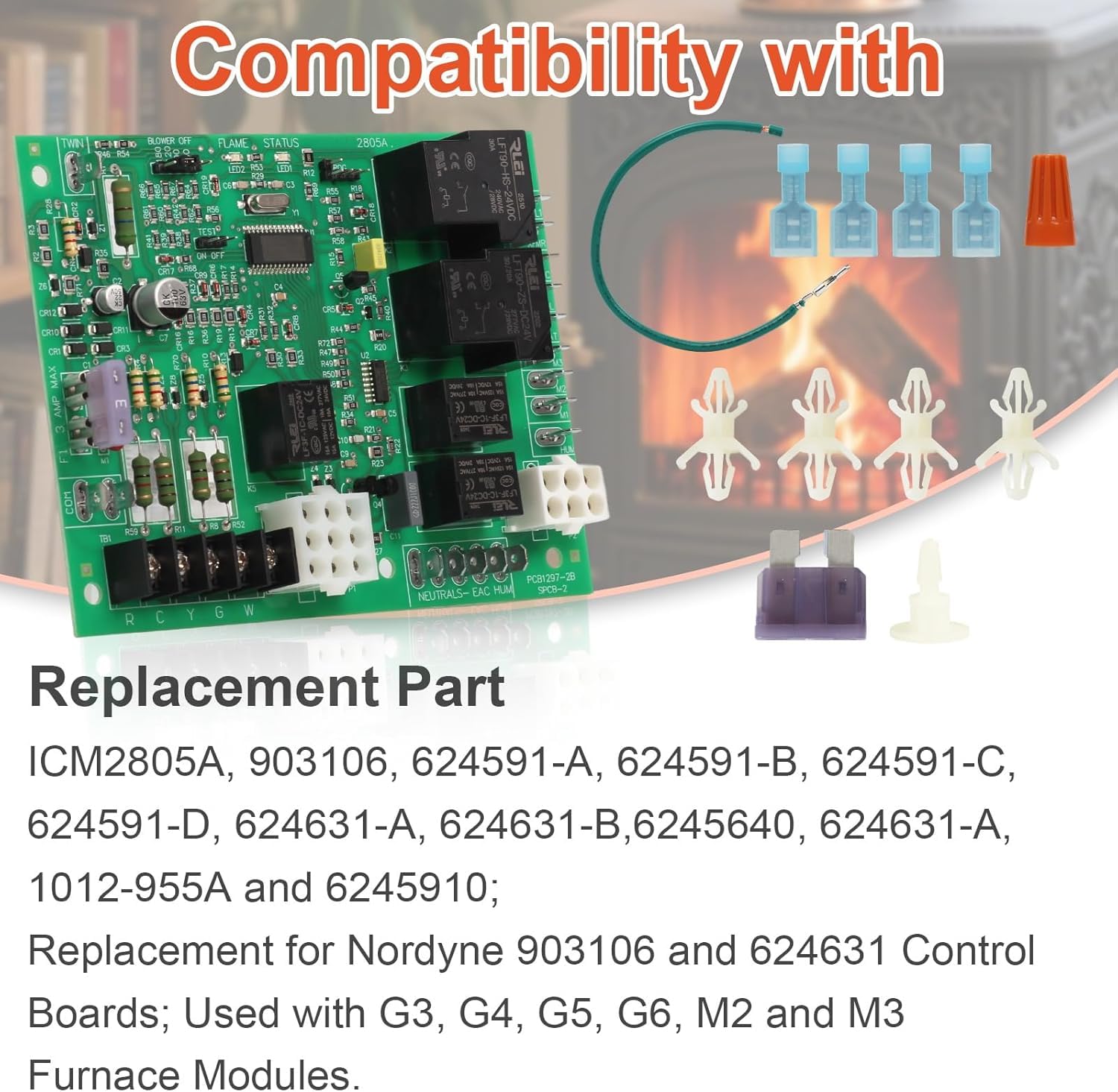

Replacement Part: ICM2805A, 903106, 624591-A, 624591-B, 624591-C, 624591-D, 624631-A, 624631-B, JHL, 6245640, 624631-A, 1012-955A and 6245910; Replacement for Nordyne 903106 and 624631 Control Boards; Used with G3, G4, G5, G6, M2 and M3 Furnace Modules. Compatibility: Replacement for Nordyne, Miller, Gibson, Intertherm, Frigidaire, Philco, and Thermal Zone furnace control boards, as well as the Carrier HK42FZ0-xx series. Voltage Range: Line (98 to 132 VAC) @ 60Hz; Ignitor: 5A @ 120 VAC; Cool Blower: 30A, 2HP, 240 VAC; Heat: 5A, 1/2 HP, 240 VAC; Inducer Motor: 4A, FLA-8.0 LRA @ 120 VAC; Gas Valve: 1.5A @ 30 VAC. Upgrade: Controls the gas valve, inducer draft motor, circulating blower, and hot surface ignitor; monitors timing, trial for ignition, flame sensing, lockout, as well as pressure, rollout, and limit switches. Features microprocessor-based precision, and diagnostic LEDs to aid in testing and troubleshooting. Safety First: Always ensure all power is completely off before installation. For your safety and to guarantee correct operation, professional installation by a qualified technician is highly recommended. Note: Before removing the old unit, please take a picture of its wiring for reference. This will help ensure all wires are reconnected to the correct terminals on the new board. If you have any questions about our products, please feel free to contact us.
