ToBeGreat 1 Pair Undermount Drawer Slides 18 Inch 80 lb Load Capacity Soft Close Full Extension Ball Bearing Hidden Bottom Mount Rails Locking Devices Concealed Runners(with Bracket)

From the Manufacturer

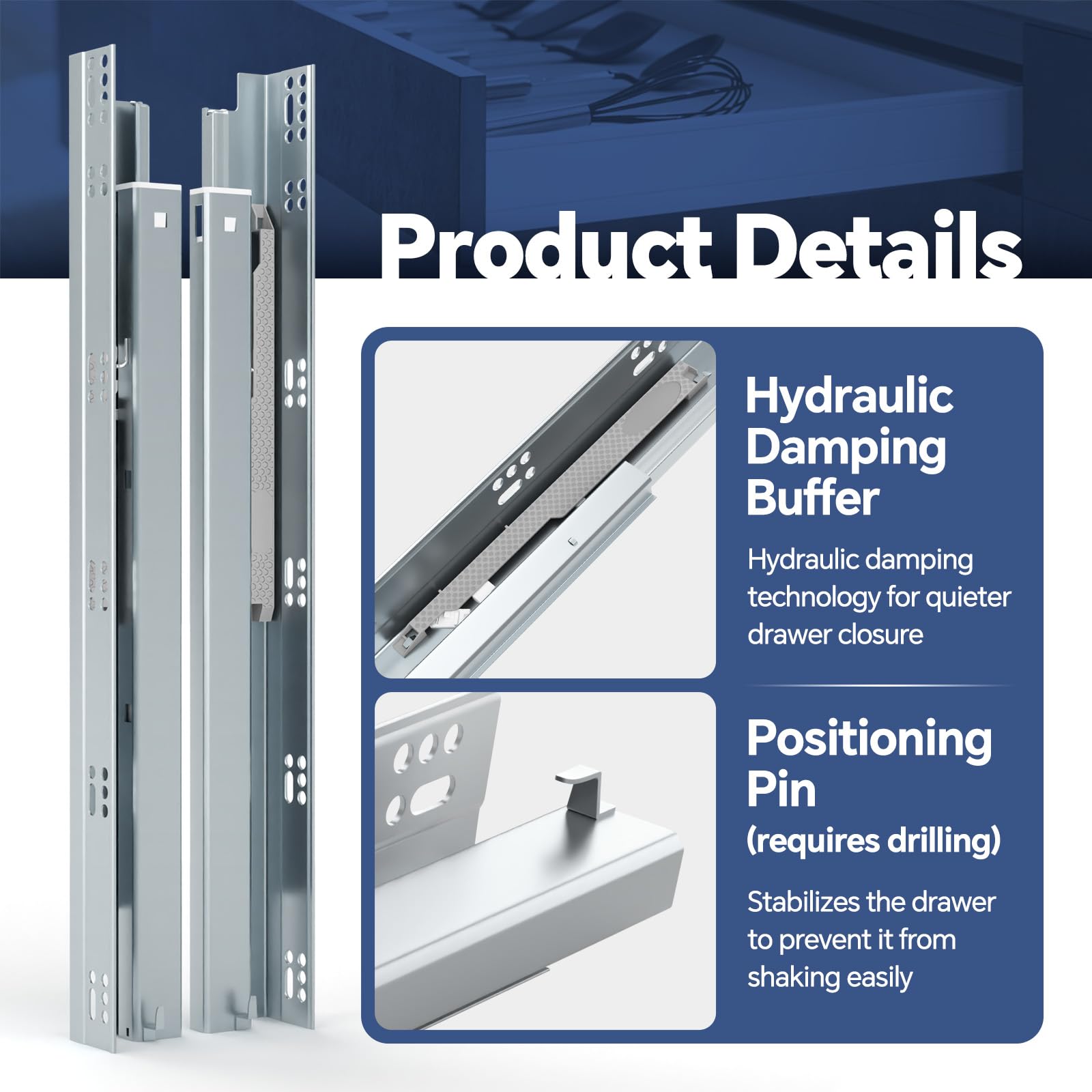

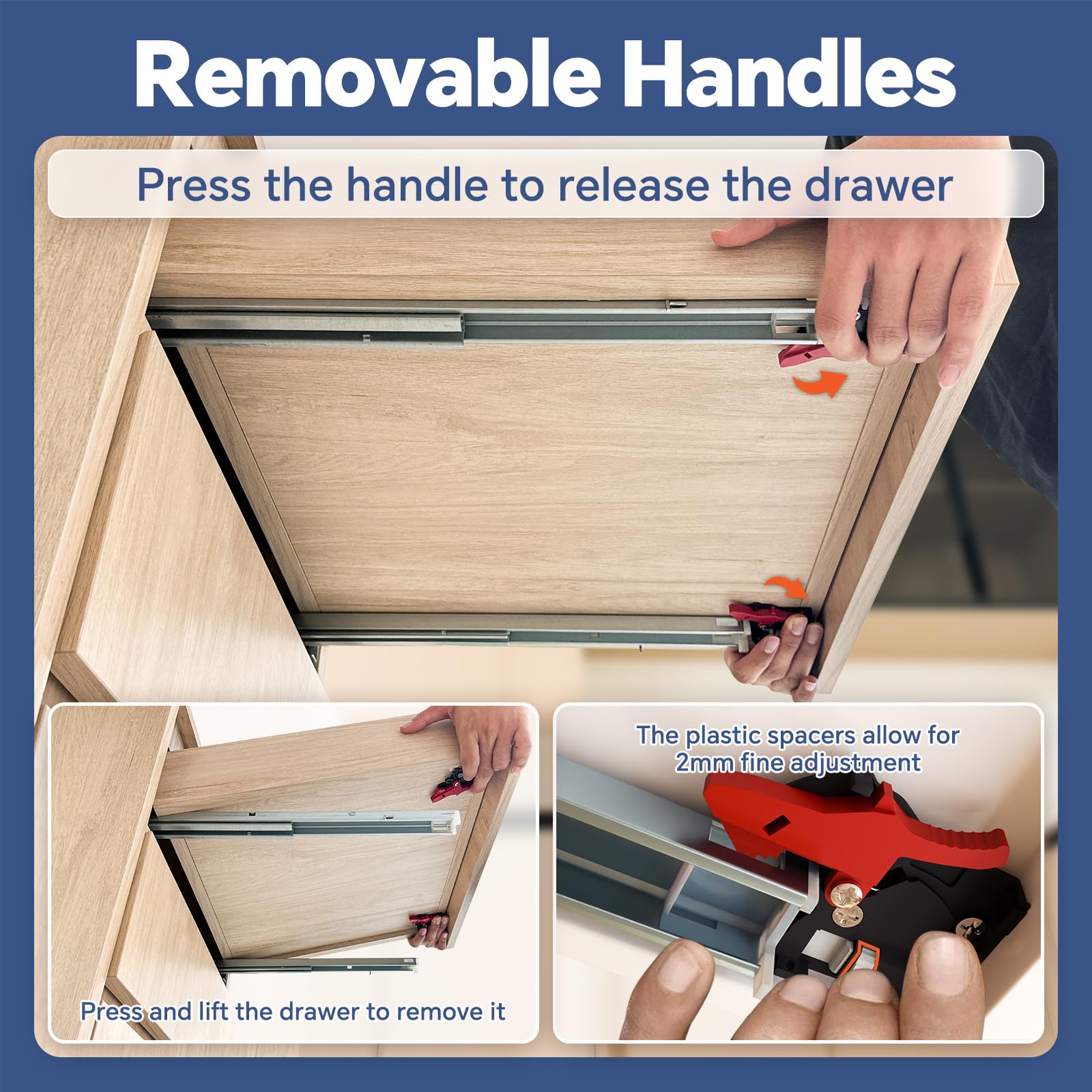

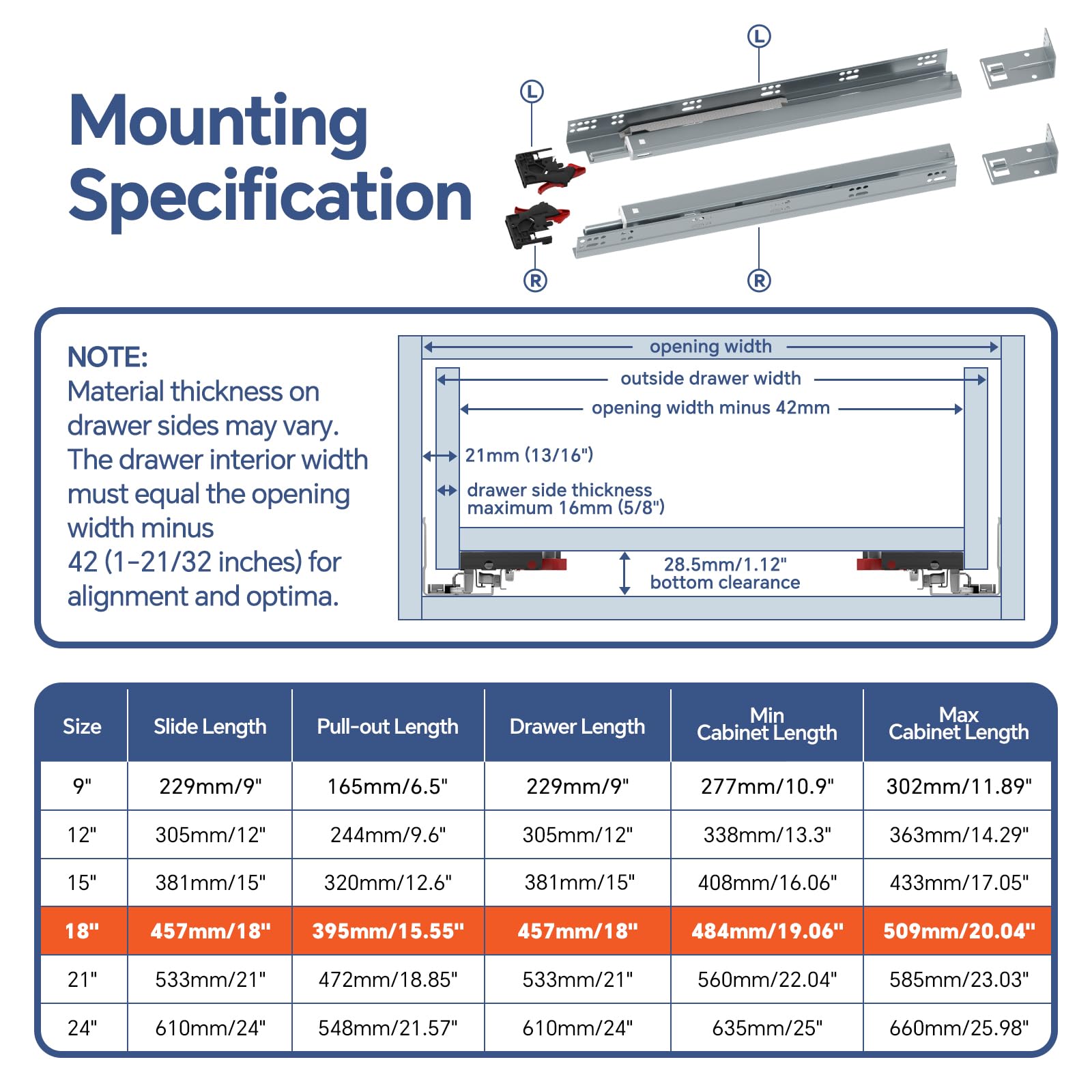

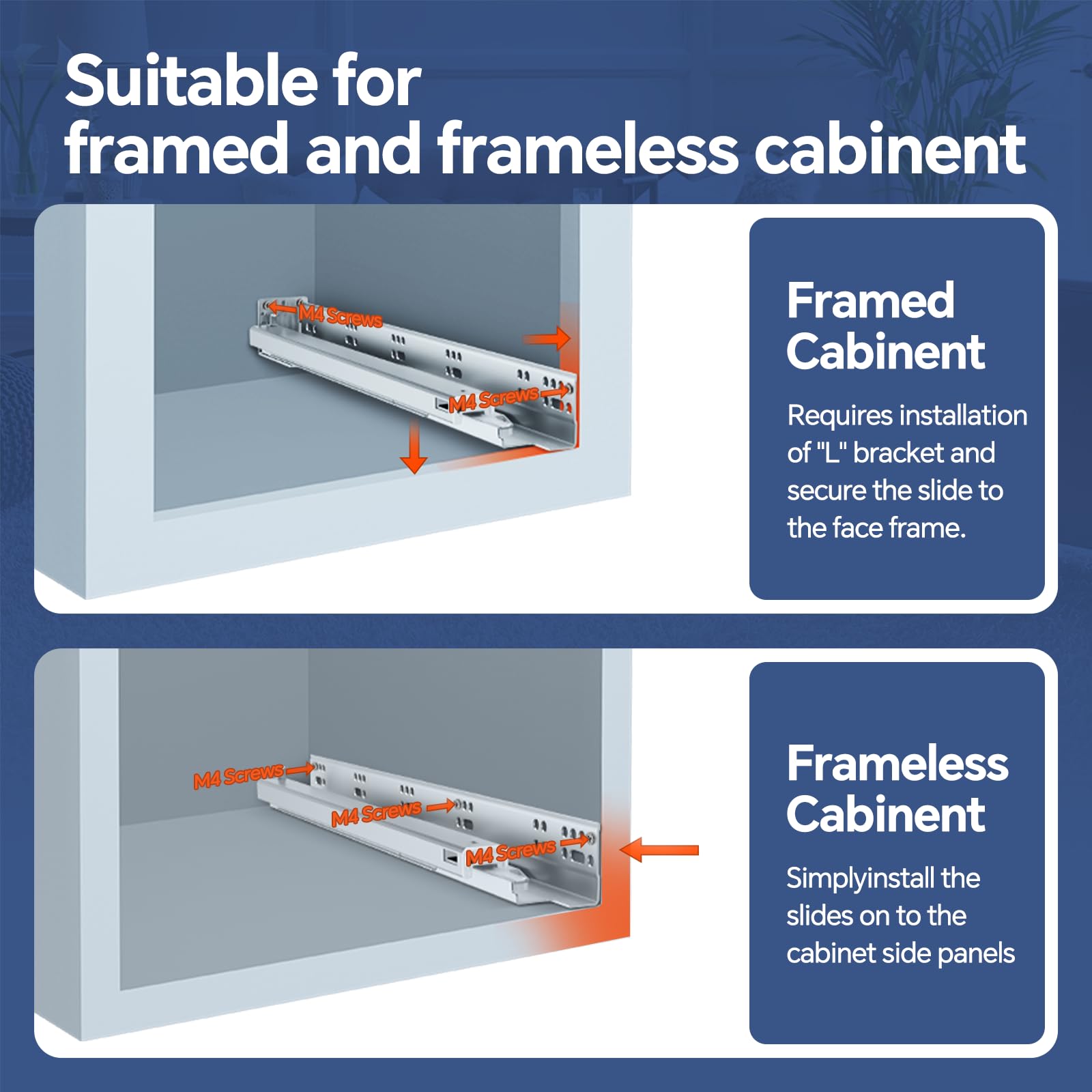

【 Undermount & Soft Close 】Drawer slides are mounted on the bottom of the drawer, making your drawers look more beautiful and comfortable. But screws are mounted on both sides of the cabinet.The self-closing drawer slide rail adopts a new copper hydraulic buffer double-spring structure, thus reducing noise when closing the drawer. NOTE: Complete pair for face frame or frameless application. 【Installation Note】This is undermount soft close drawer slide.Slides length: 441mm(17.36") The maximum thickness of the side panel of the applicable drawer is 16mm (5/8″).Please leave 28.5mm clearance for bottom mounting, please choose the slide according to the depth of the drawer, for example: the net length of the drawer is 9 inch, please choose 9 inch slide. 【Full Extension & Detachable】 It's approximately 2 times in length when the slide is fully extended, which means you can completely pull out your drawer installed with our drawer slides. You can squeeze two red handles on the locking mechanism in the meantime. And then pull up the drawer. Pressing the handle allows the drawer to be removed, making installation and maintenance—such as cleaning the drawer—convenient. 【Comprehensive Packaging & Accessories】You'll receive one pair of slides (2 pieces),32 installation screws,2 red handles, 2 “L” brackets and installation instructions.Note: Since the slide has a locating pin, it is necessary to drill a hole in the back of the drawer (for details, please refer to the picture in the link). 【Double Anti-Rust】The drawer slides feature a blue zinc plating finish that provides excellent corrosion resistance by creating a protective barrier against moisture and oxidation. This high-quality surface treatment not only extends the life of the slides but also ensures their durability in various environments. We focus on the quality of our slides, ensuring that the product you purchase will serve you well for years to come.
