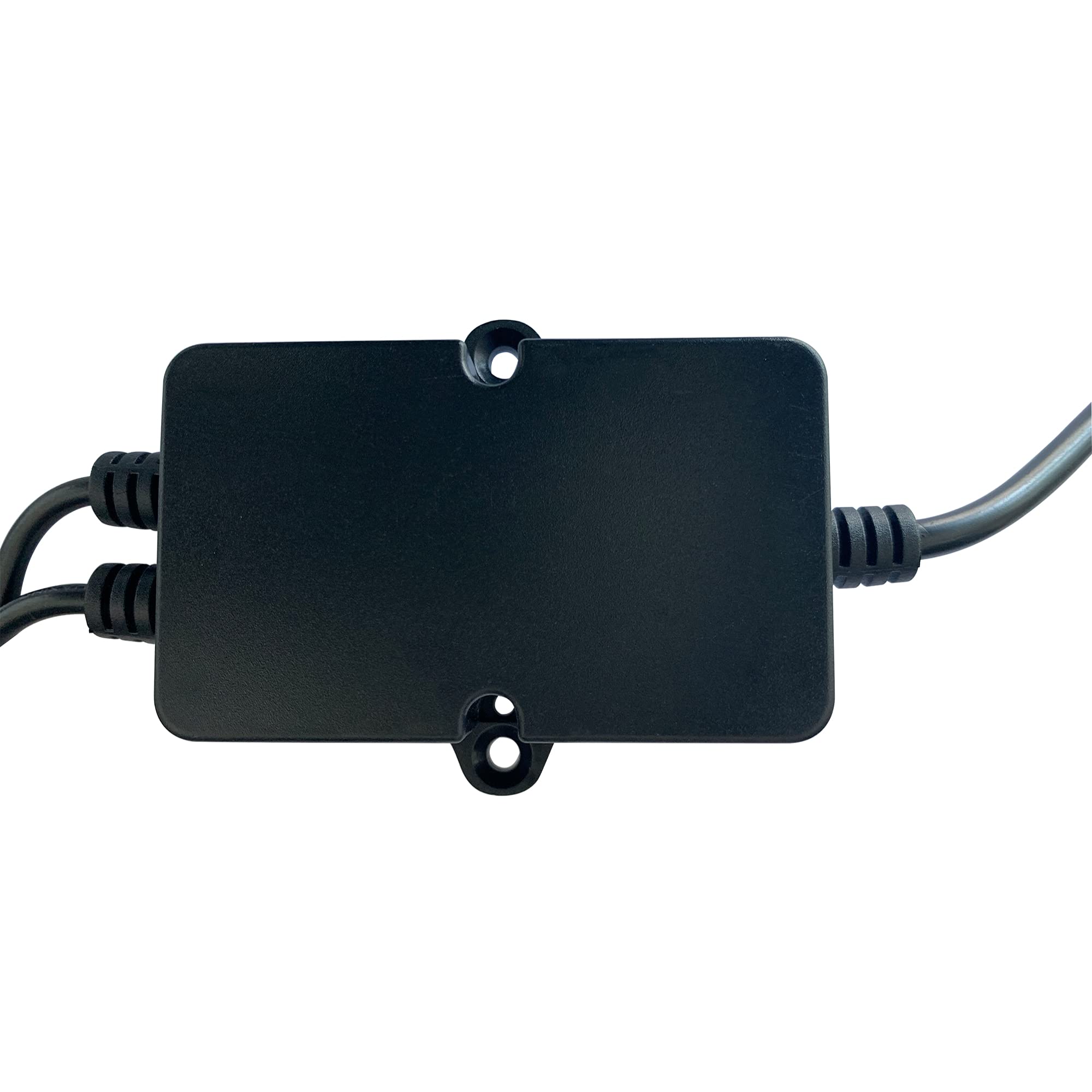

Touch Sensor Control Box Replacement for Electric Recliner / Sofa / Lift Chairs

From the Manufacturer

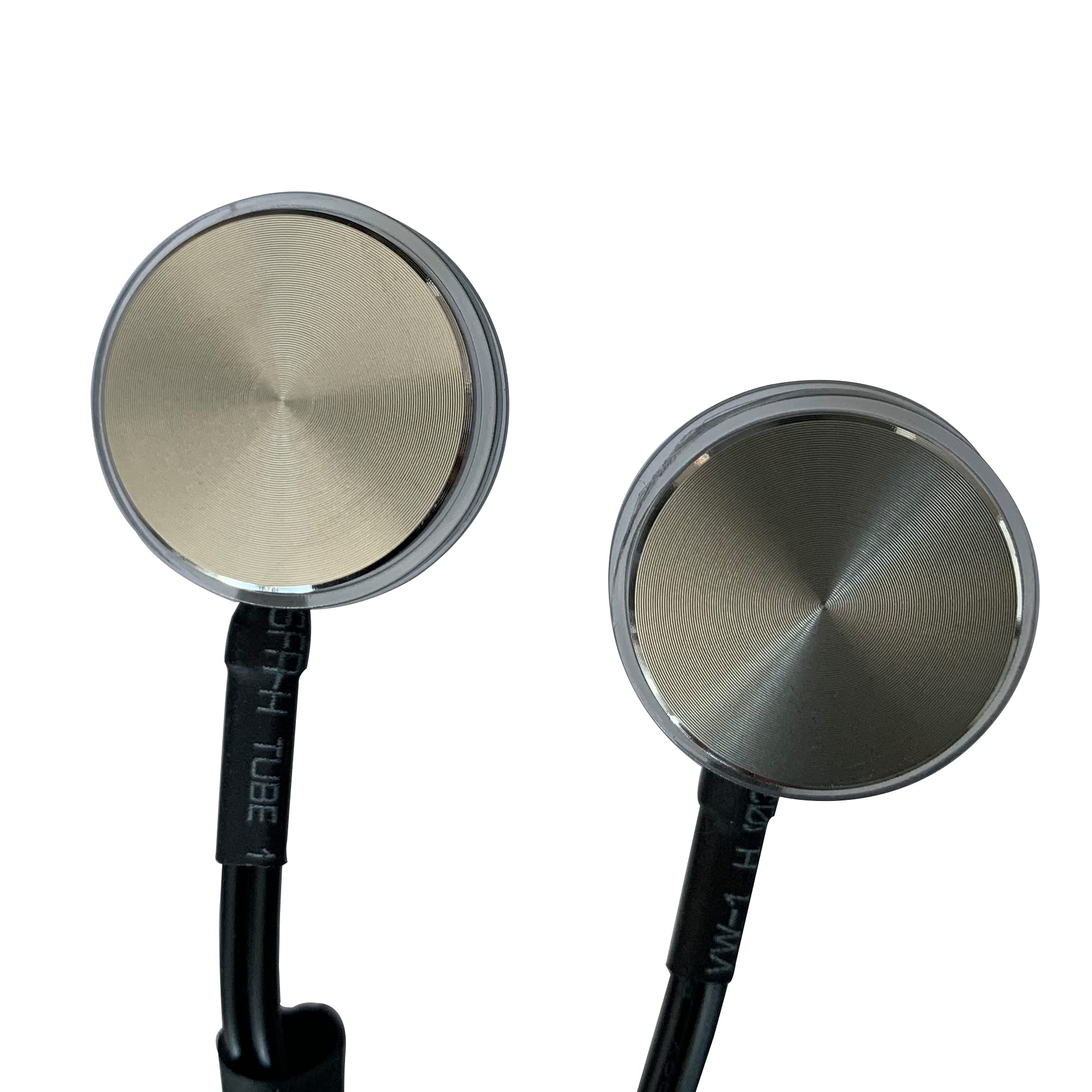

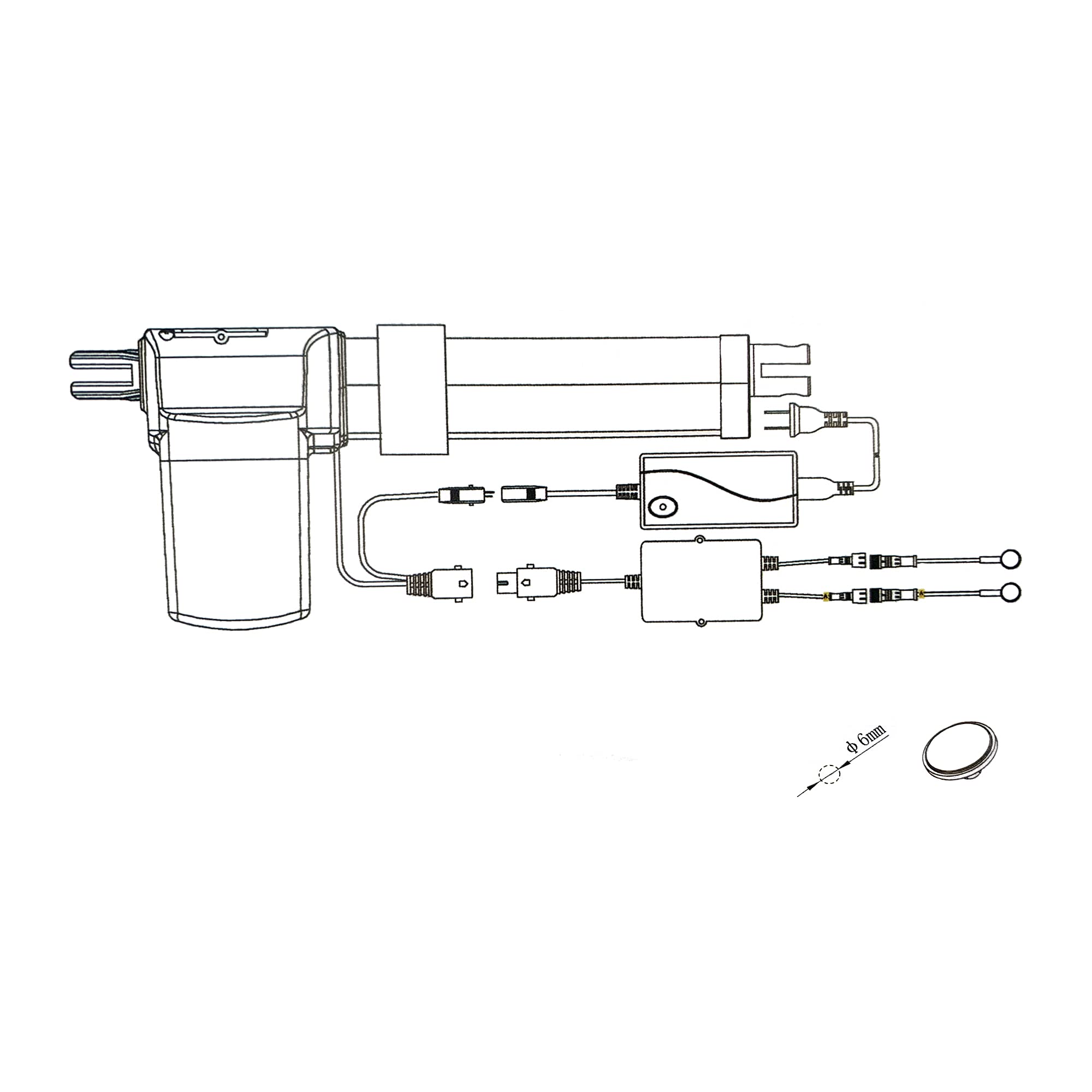

About STAIGO STAIGO is a professional laptop/tablet battery and electronic products accessories manufacturer. High quality, best service and amazing price is our everlasting pursuit. Technical Parameters: Rated voltage: 29V Rated current: 1.8A Schematic Diagram of Controller Keys: 1. Turn on the motor Touch the button to open the motor (A), the motor keeps extending until it stops at the farthest point. During the touch, if the touch is stopped, the motor will also stop extending. 2. Take back the motor Touch the button to retract the motor (the other button), and the motor will continue to retract until it stops at the farthest point. During the touch, if the touch is stopped, the motor will also stop the retracting action. Reminding: 1. When installing this control components, you must confirm the applicable power supply model, and check the line connection according to our connection diagram, otherwise it may cause damage to some parts due to improper connection. 2. When the product fails, please contact our after-sales service for your rights, and do not disassemble it for repair without authorization. 3. When not in use for a long time, please disconnect the main power supply. Installation Tips: 1. The leather hole is 6mm, and the product is inserted into the leather hole. 2. Install the gasket anti-loosing glue and tighten the terminal wire screws. Package Include: Control box x 1 Touch controller x 2 Mounting screws x 2
