Rudder Angle Sensor Indicator for Marine Boat Motor Gauge 0-190 ohm NEW

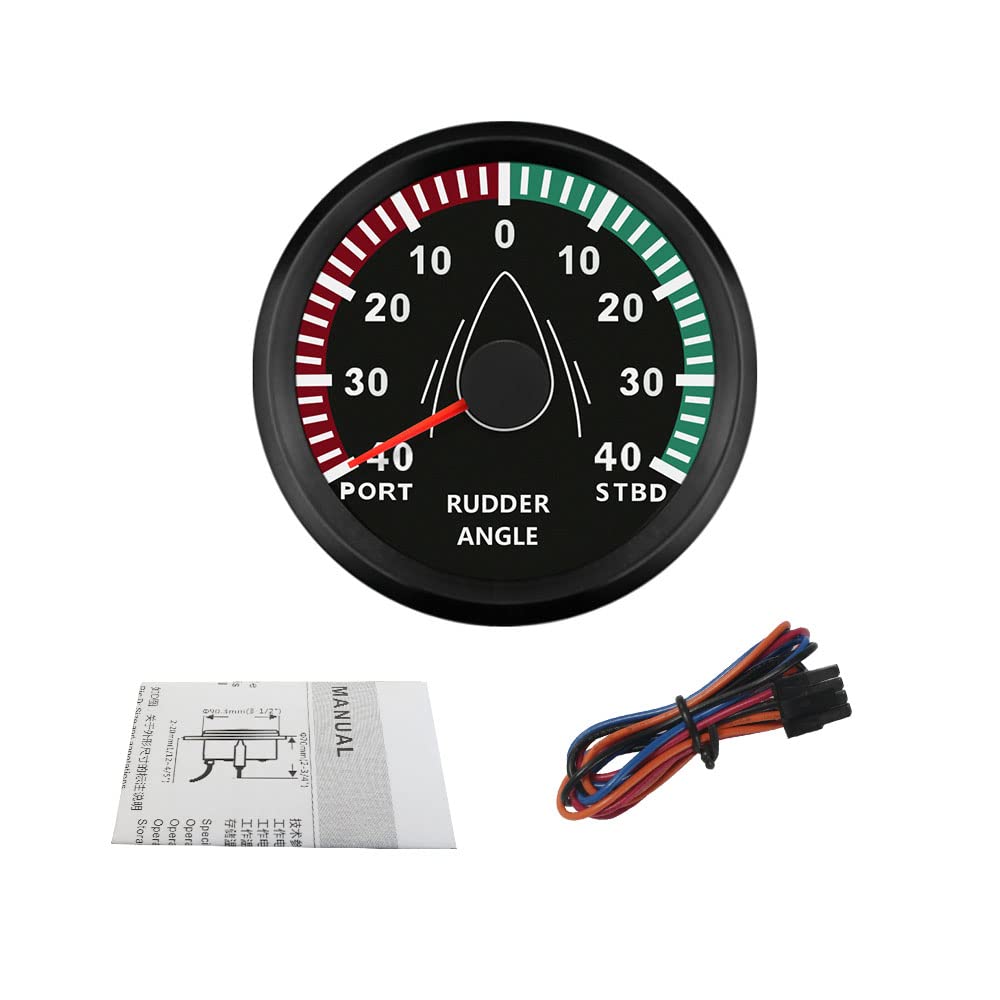

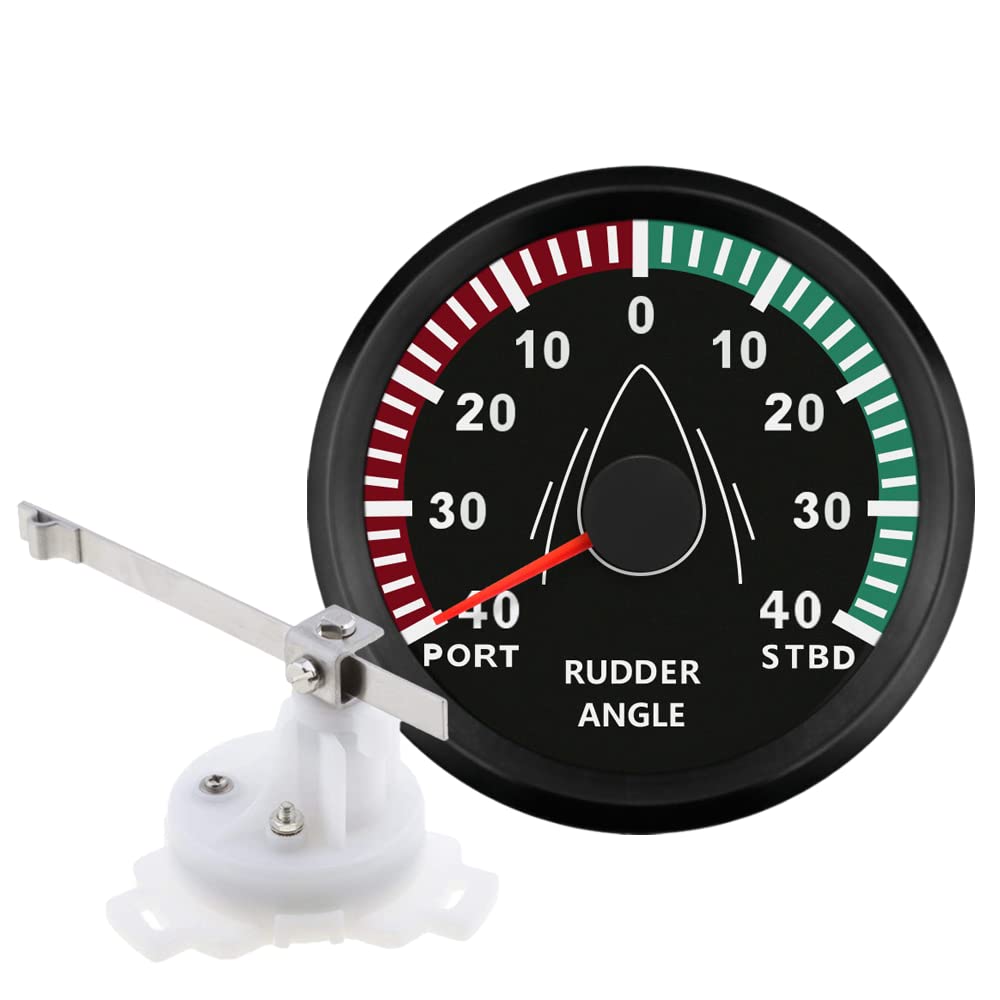

ELING Guaranteed Rudder Angle Gauge Indicator 0-190ohm with Mating Sensor with Backlight 85mm 12V/24V
New - Open Box
1 / 7ELING
ELING Guaranteed Rudder Angle Gauge Indicator 0-190ohm with Mating Sensor with Backlight 85mm 12V/24V
New - Open Box
Pickup in Ephrata, WA · No Shipping
· Choose a pickup time at checkout
· Deposits are non-refundable

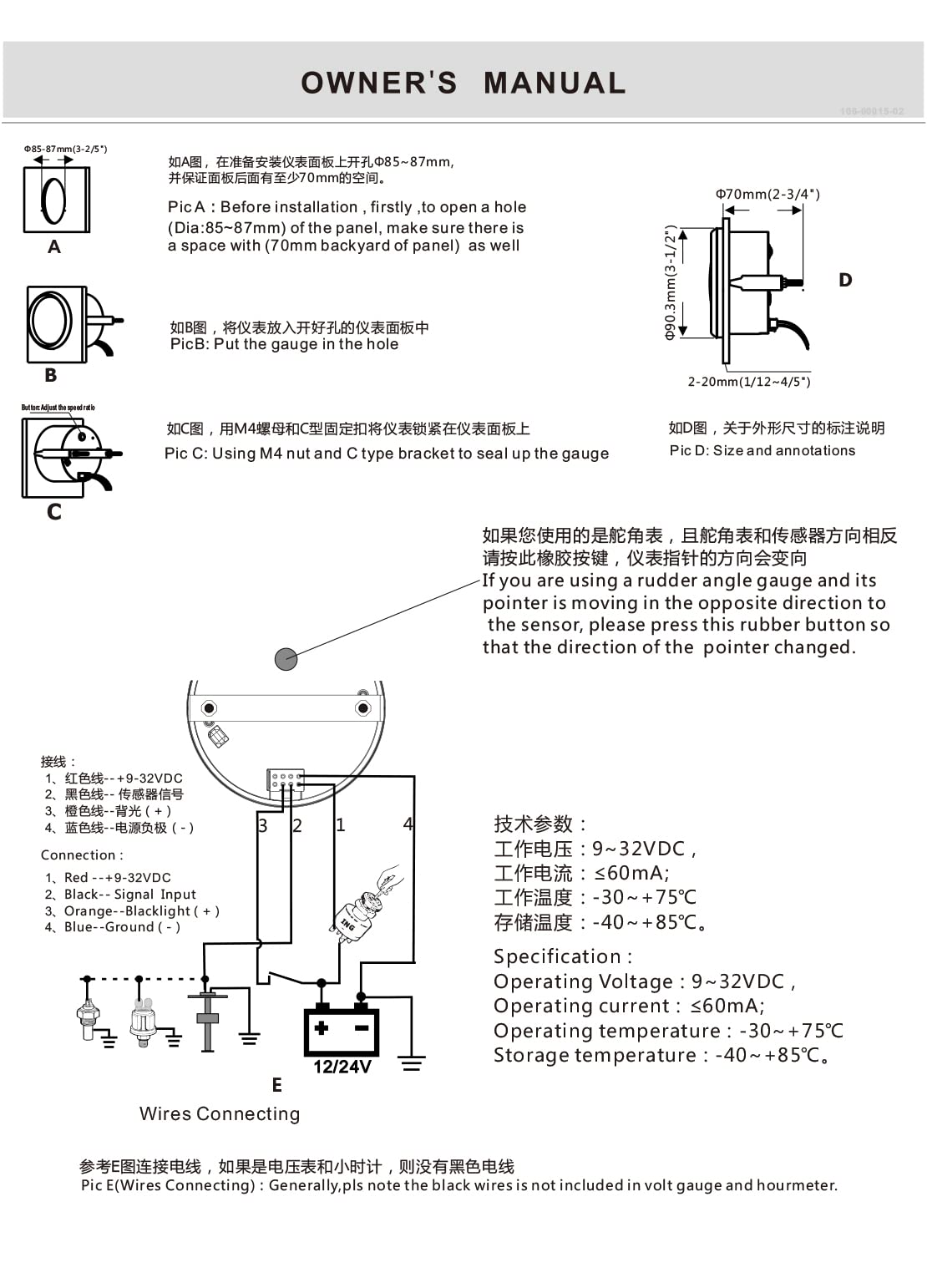

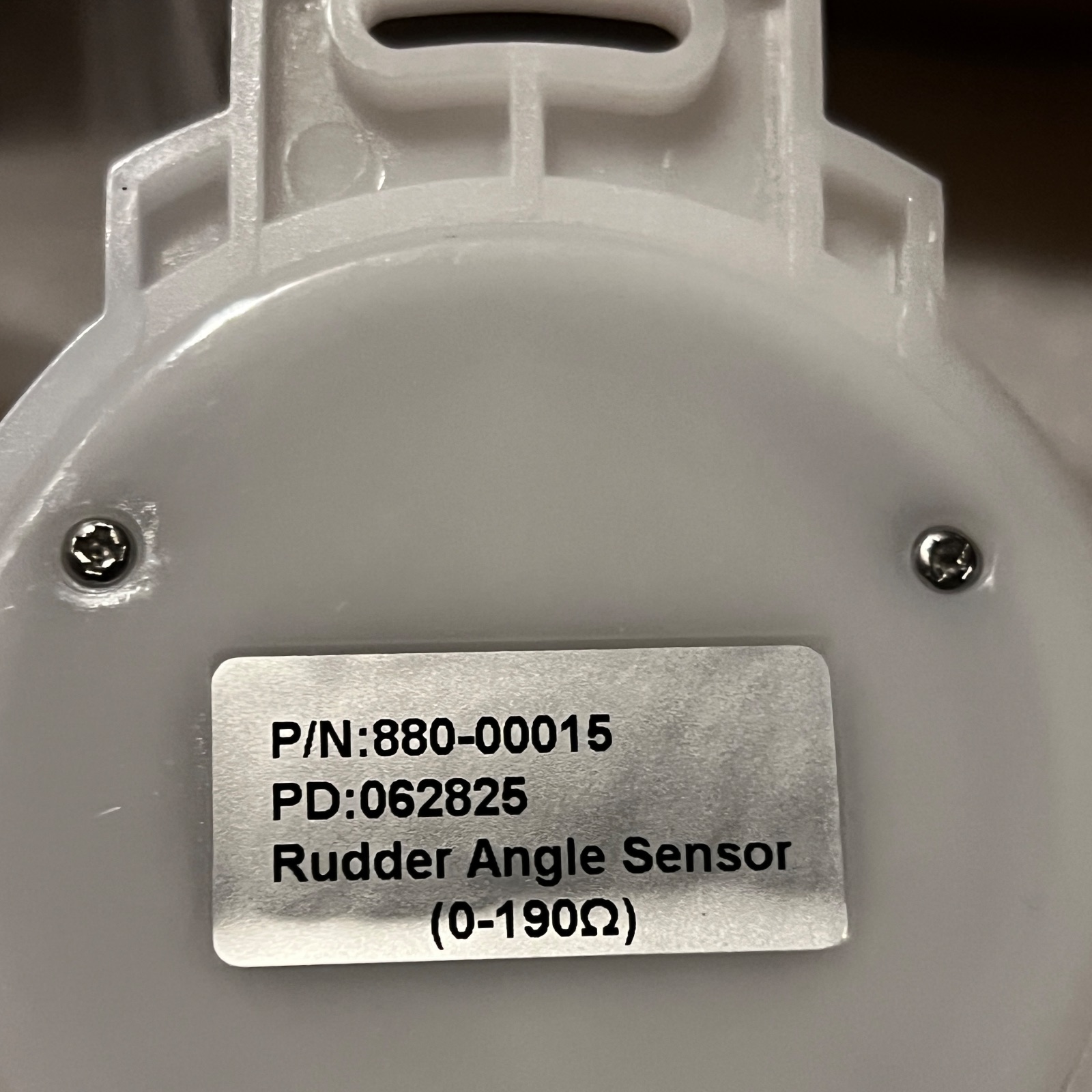

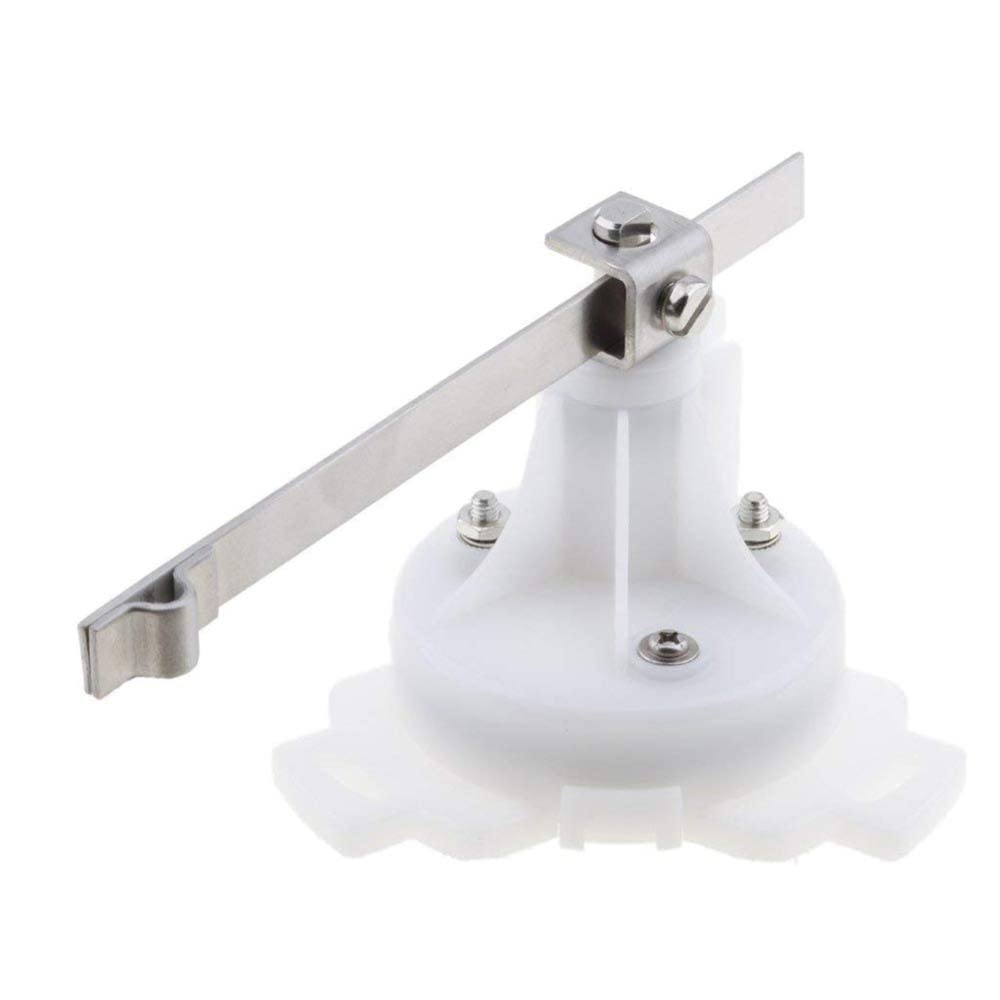

New in box with instructions • P/N: 880-00015 • PD:062825 • Rudder Angle Sensor • (0-190 ohm) • Measuring Range 0-190 ohm • Mounting Type Flange Mount • Output Type Resistance • Resistance output signal: 0-190ohm • Maximum ratings: P=500mW • Working Temperature: -40~85℃ • Installation instructions included

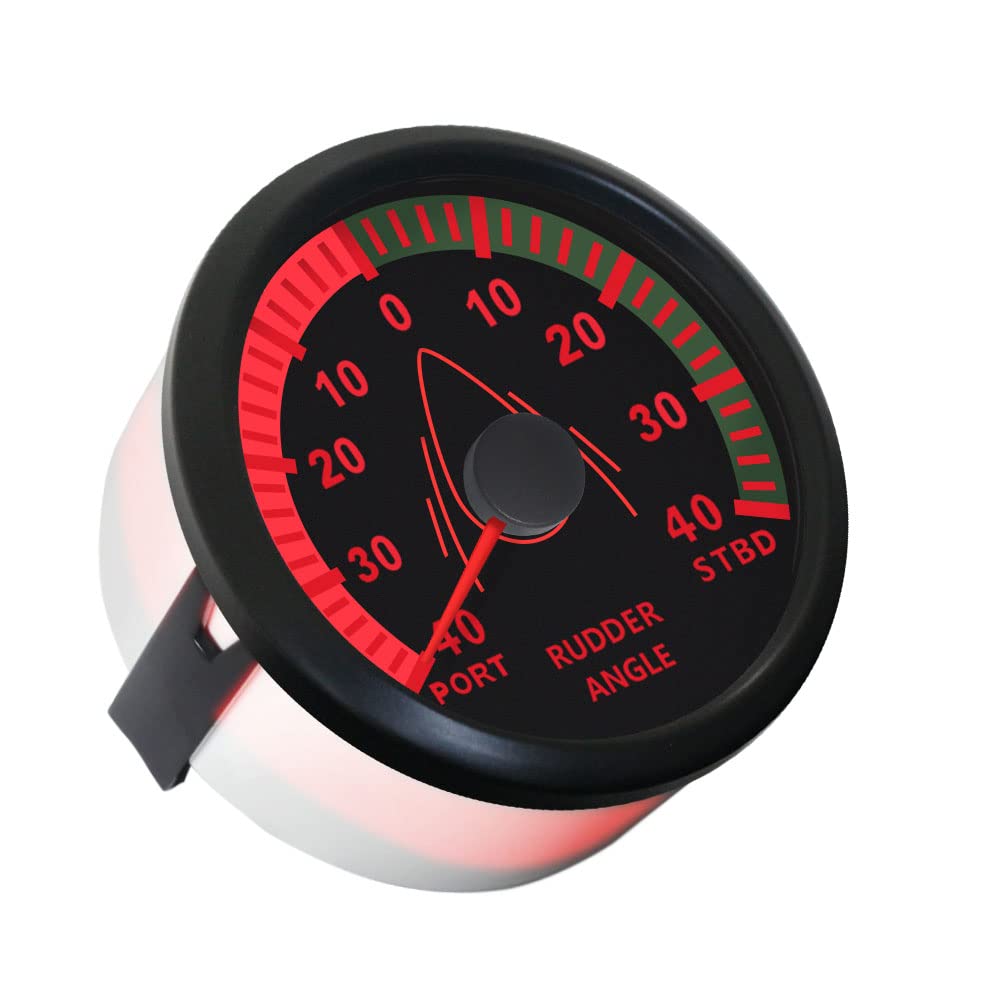

Overview • 3-3/8" dimension and 2-3/4" depth hole required for installation. Features • Indicating Range: 40PORT-40STBD • Output Signal: 0-190ohm • 4-wire connection: Blue-power negative, Red-power positive, Black-signal wire, Orange(backlight)-power positive Red Backlight • 9-32VDC (12VDC/24VDC) Working Voltage • 100% Waterproof and anti-fogging protection
ELING

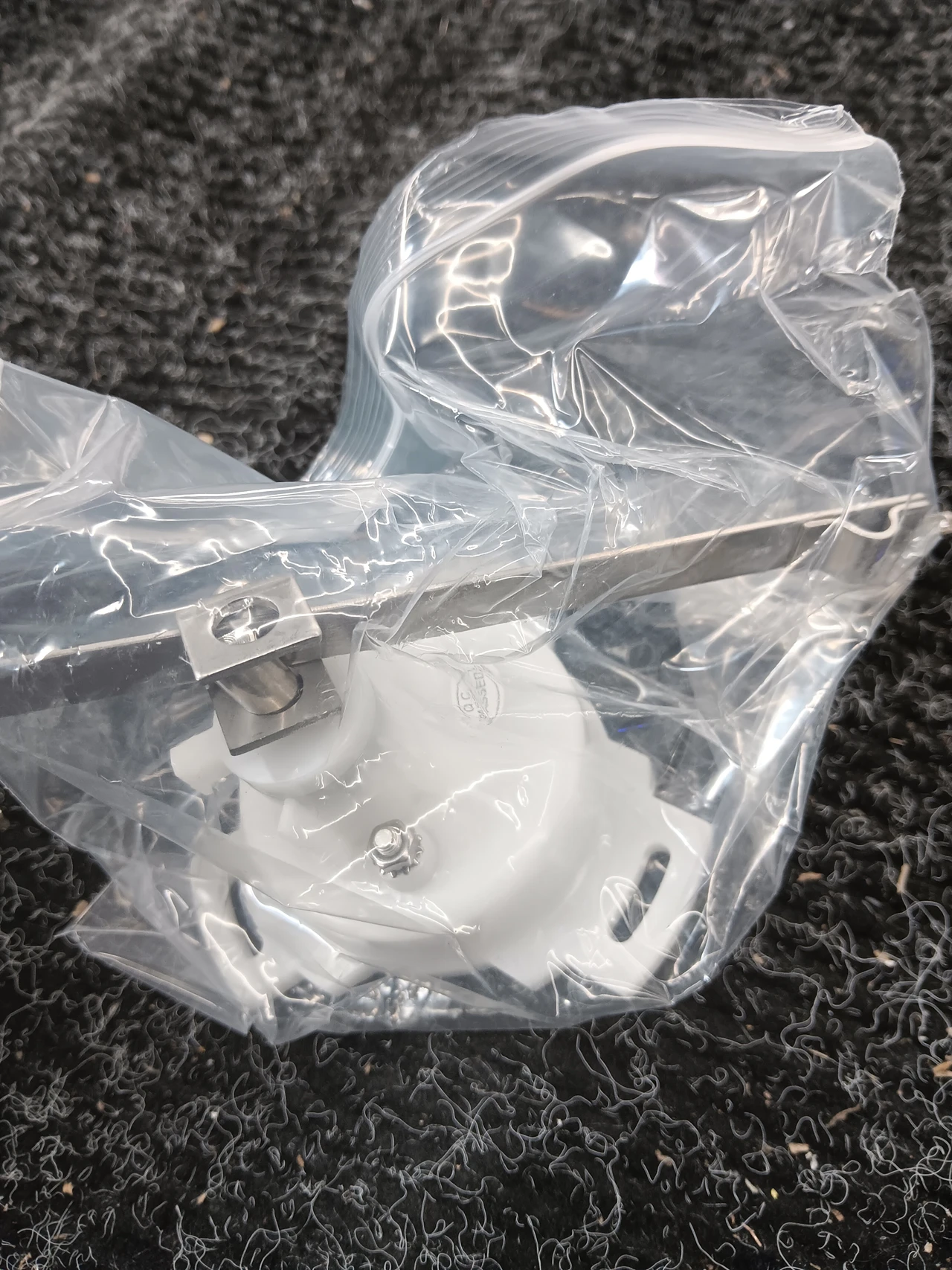

This item is new in a box that has been opened. It may show minor handling marks, and the packaging may be damaged, worn, or missing.
This item can be returned within 7 days if it is materially different from the description or a claimed function does not work.
